Install JBoss 7.1 on CentOS 6

This post will cover installing JBoss 7.1.1 on CentOS 6.x.

We'll also set up JBoss to run as a service, as well as set up access to the management console

Finally, we will look at how run JBoss on port 80 or, alternatively, placing JBoss behind Apache.

In this post, we will set up the JBoss 7.1.1 in Standalone mode. In a subsequent post we will look at setting up JBoss 7.1.1 in Domain mode.

Step 1: Install the Java 6 or 7


Firstly, we will need to install Java.

JBoss 7.1.1 will work with JDK 6 or JDK 7.

I'm using JDK 7, update 5.

You can download the JDK here: http://www.oracle.com/technetwork/java/javase/downloads/index.html

The instructions below will also work with JDK 6, you just need to change the file names accordingly.


Start by creating a directory /usr/java.

[root@dev2 ~]# mkdir /usr/java


Download jdk-7u5-linux-x64.tar.gz (or latest) and save to /usr/java directory you created above.


[root@dev2 java]# ls
jdk-7u5-linux-x64.tar.gz



Extract it:

[root@dev2 java]# tar -zxf  jdk-7u5-linux-x64.tar.gz


This will create the directory, /usr/java/jdk1.7.0_05, this will be our JAVA_HOME.

[root@dev2 java]# ls
jdk1.7.0_05  jdk-7u5-linux-x64.tar.gz
[root@dev2 java]# cd jdk1.7.0_05
[root@dev2 jdk1.7.0_05]# pwd
/usr/java/jdk1.7.0_05


Note: If you decided to use JDK 6 rather than 7 as we did above, simply save the JDK 6 bin file to /opt (or another location), then navigate to /usr/java and issue: 'sh /opt/jdk-6u33-linux-x64.bin' as shown below (substitute whichever version you downloaded). This will create a JAVA Home of /usr/java/jdk1.6.0.33

[root@dev2 ~]#cd /usr/java
[root@dev2 java]# sh /opt/jdk-6u33-linux-x64.bin



Step 2: Download and Install JBoss 7.1.1 Application Server


Change to the /usr/share directory:

[root@dev2 jdk1.7.0_05]# cd /usr/share


Download jboss-as-7.1.1.Final.zip at http://www.jboss.org/jbossas/downloads and save it to /usr/share. Or, use wget:


[root@dev2 share]# wget http://download.jboss.org/jbossas/7.1/jboss-as-7.1.1.Final/jboss-as-7.1.1.Final.zip



Unzip the file:


[root@dev2 share]# unzip -q jboss-as-7.1.1.Final.zip



Rename jboss-as-7.1.1.Final to jboss-as. This isn't strictly necessary, but it will save you the bother of changing the start up script later.


[root@dev2 share]# mv jboss-as-7.1.1.Final jboss-as


Our JBOSS_HOME is '/usr/share/jboss-as'.

[root@dev2 share]# cd jboss-as
[root@dev2 jboss-as]# pwd
/usr/share/jboss-as


Step 3: Create the user jboss, who will own and run JBoss


Since we will want to run JBoss as a non-root user with minimal privileges, we'll create a user, jboss, who will own the JBoss files and JBoss will run under his account.

To do this, do the following.

Create a new group, jboss, and then create the user jboss and add the user to the jboss group.

[root@dev2 share]# groupadd jboss
[root@dev2 share]# useradd -s /bin/bash -g jboss jboss


Change ownership of the JBoss home directory, /usr/share/jboss-as so all files are owned by the user jboss we created.

[root@dev2 share]# chown -Rf jboss.jboss /usr/share/jboss-as/


Step 4: Put Java into the path of jboss and root


Now, we need to put Java into the path of the users jboss and root (as well as any other users you like)

The JAVA_HOME is where we installed the JDK above: /usr/java/jdk1.7.0_05

Add the following to the .bash_profile of the user jboss and the user root:

JAVA_HOME=/usr/java/jdk1.7.0_05
export JAVA_HOME
PATH=$JAVA_HOME/bin:$PATH
export PATH


As root, issue '. ~/.bash_profile' as below to put JAVA into the path of root immediately.

[root@dev2 ~]# . ~/.bash_profile


Check that JAVA is now in the path of root by issuing 'java -version' as below.
[root@dev2 ~]# java -version
java version "1.7.0_05"
Java(TM) SE Runtime Environment (build 1.7.0_05-b06)
Java HotSpot(TM) 64-Bit Server VM (build 23.1-b03, mixed mode)
[root@dev2 ~]#



We need to have JAVA in the path of user root for when we add a Management User for JBoss console in Step 8 below.

Finally, switch to the user jboss and issue 'java -version' to verify that Java is now in the path of user jboss.


[root@dev2 ~]# su - jboss
[jboss@dev2 ~]$ java -version
java version "1.7.0_05"
Java(TM) SE Runtime Environment (build 1.7.0_05-b06)
Java HotSpot(TM) 64-Bit Server VM (build 23.1-b03, mixed mode)
[jboss@dev2 ~]$



Step 5: Create a start/stop/restart script for JBoss.


To create our JBoss script, we will copy the jboss-as-standalone.sh script located under /usr/share/jboss-as/bin/init.d

As root, copy jboss-as-standalone.sh to /etc/init.d and rename it jboss

.
[root@dev2 ~]# cd /usr/share/jboss-as/bin/init.d
[root@dev2 bin]# cp jboss-as-standalone.sh /etc/init.d/jboss


The only change I needed to make two changes to the script

The first was to change line #5 below from it's original '# chkconfig: - 80 20' to '# chkconfig: 234 80 20' The second was to set the JBOSS_USER.

To set the JBOSS_USER, add the following lines to script:

JBOSS_USER=jboss
export JBOSS_USER

You can add the lines just under 'export JAVA_HOME' on line 18 or so below. So the beginning of your script will look like this:

#!/bin/sh
#
# JBoss standalone control script
#
# chkconfig: 234 80 20
# description: JBoss AS Standalone
# processname: standalone
# pidfile: /var/run/jboss-as/jboss-as-standalone.pid
# config: /etc/jboss-as/jboss-as.conf

# Source function library.
. /etc/init.d/functions

# Load Java configuration.
[ -r /etc/java/java.conf ] && . /etc/java/java.conf
export JAVA_HOME

JBOSS_USER=jboss
export JBOSS_USER

# Load JBoss AS init.d configuration.
if [ -z "$JBOSS_CONF" ]; then
  JBOSS_CONF="/etc/jboss-as/jboss-as.conf"
fi

[ -r "$JBOSS_CONF" ] && . "${JBOSS_CONF}"

# Set defaults.

if [ -z "$JBOSS_HOME" ]; then
  JBOSS_HOME=/usr/share/jboss-as
fi
export JBOSS_HOME


Step 6: Run JBoss as a Service.


To run JBoss as a service and enable start up at boot, make the script we created above executable and add it to our chkconfig so it starts at boot.

[root@dev2 init.d]# chmod 755 jboss
[root@dev2 init.d]# chkconfig --add jboss
[root@dev2 init.d]# chkconfig --level 234 jboss on


We should now be able to Start, Stop, and Restart JBoss as a service.

Start JBoss (JBoss can take some time to start, but it is faster than JBoss 6).:

[root@dev2 init.d]# service jboss start
Starting jboss-as:                                         [  OK  ]
[root@dev2 init.d]#


Stop JBoss:
[root@dev2 init.d]# service jboss stop
Stopping jboss-as: *** JBossAS process (25794) received TERM signal ***
                                                           [  OK  ]


Step 7: Change bind address to make JBoss accessible.


By default, JBoss 7.1.1 is bound to the loopback IP of 127.0.0.1, so if we want to make it available on the web, we need to change this.

Locate standalone.xml under /usr/share/jboss-as/standalone/configuration/.

Open standalone.xml in vi or a text editor and look for the public interfaces node as shown below.

<interface name="public">
<inet-address value="${jboss.bind.address:127.0.0.1}"/>
</interface>

To make JBoss publicly accessible, change 127.0.0.1 to either 0.0.0.0 to allow access on all interfaces or to your public IP.

So, for example, if your public IP is 173.194.35.177, you would change it as so:

<interfaces>
        <interface name="management">
            <inet-address value="${jboss.bind.address.management:127.0.0.1}"/>
        </interface>
        <interface name="public">
            <inet-address value="${jboss.bind.address:173.194.35.177}"/>
        </interface>
        <!-- TODO - only show this if the jacorb subsystem is added  -->
        <interface name="unsecure">
            <!--
              ~  Used for IIOP sockets in the standard configuration.
              ~                  To secure JacORB you need to setup SSL
              -->
            <inet-address value="${jboss.bind.address.unsecure:127.0.0.1}"/>
        </interface>
    </interfaces>



Again, if you wish to have JBoss publicly accessible on all interfaces, use 0.0.0.0 in place of your IP above.

Save your changes, start up JBoss, and check it is publicly accessible via http://yourIP:8080

[root@dev2 init.d]# service jboss start
Starting jboss-as:                                         [  OK  ]


Woo-hoo! JBoss 7:

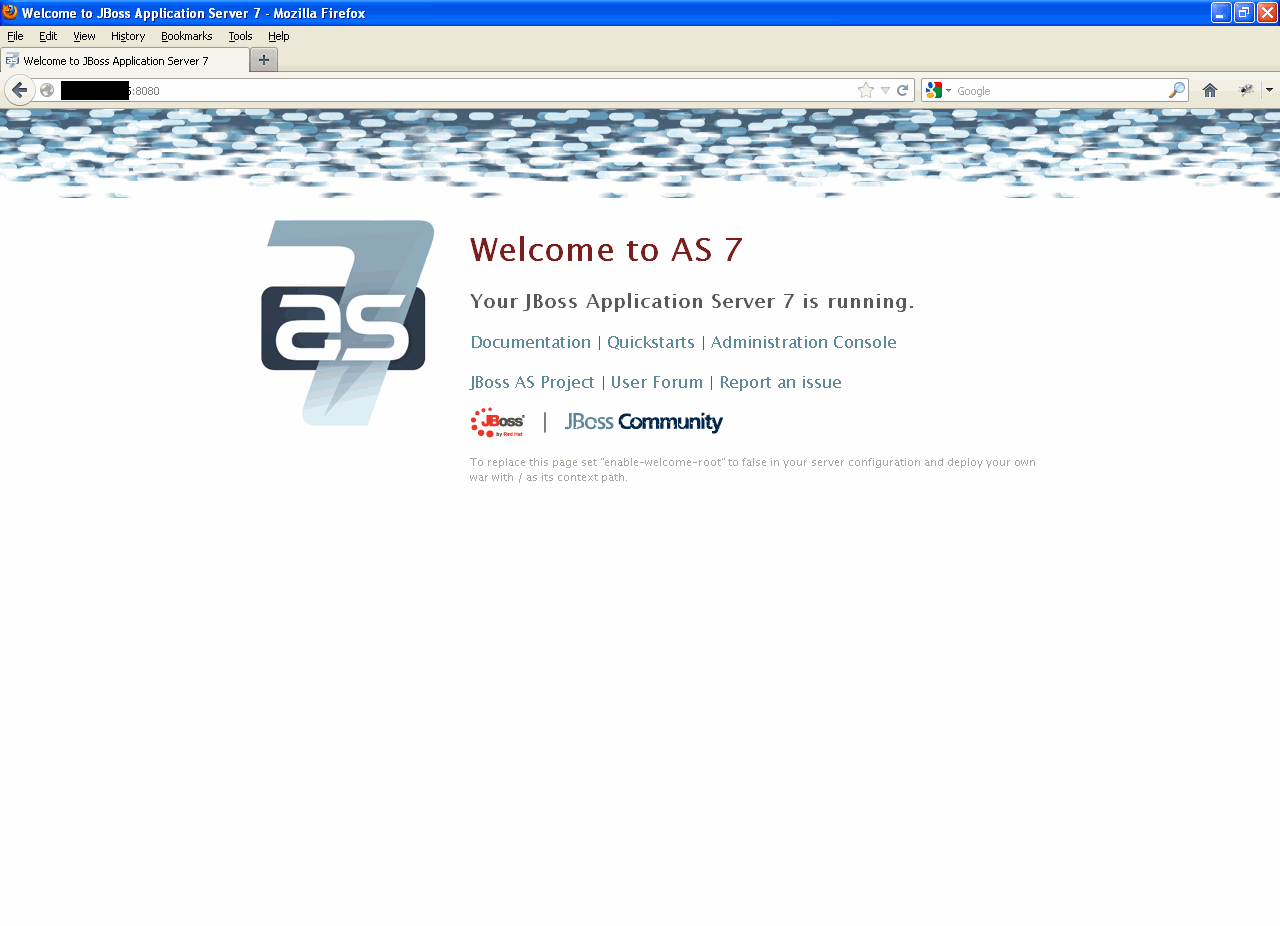

JBoss 7.1.1 Welcome Page



Step 8: Accessing the JBoss 7 Admin Console and adding a Management User

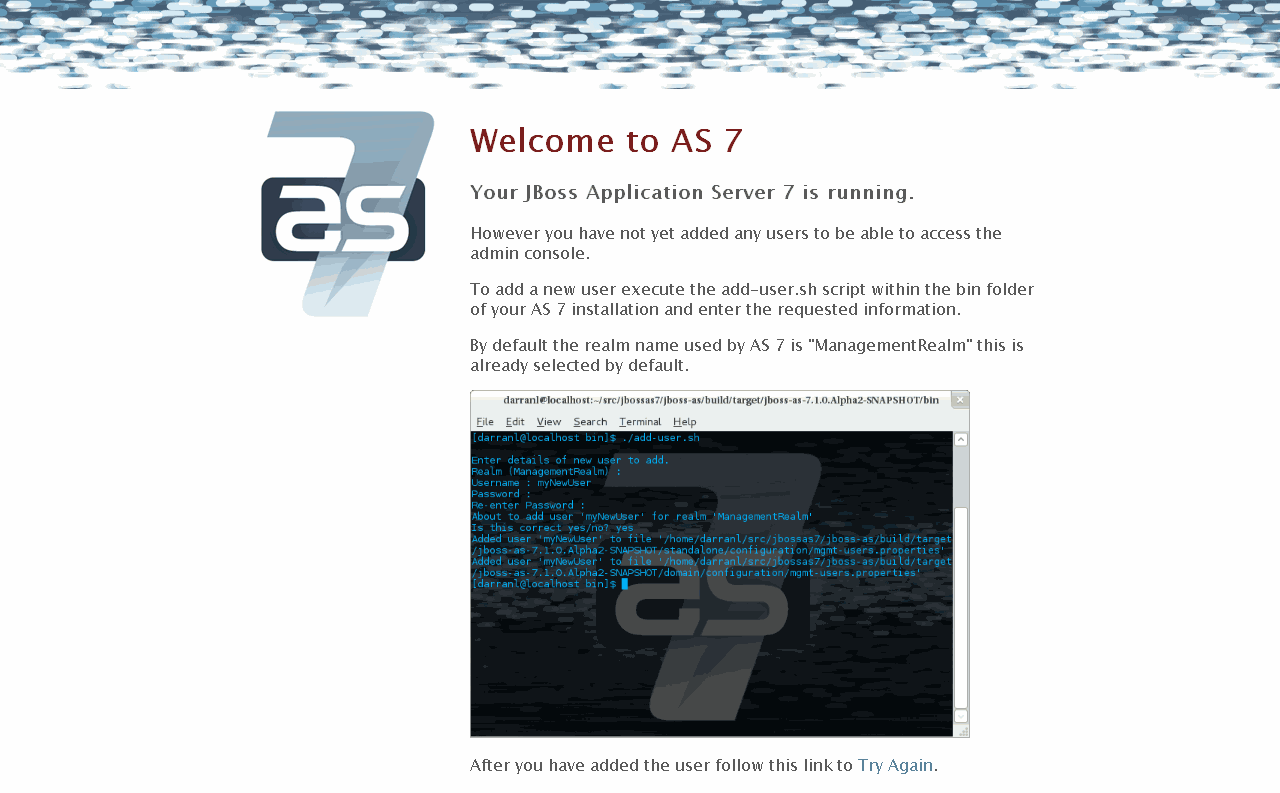

If you try to access the JBoss Admin Console via the link on the home page (or by going directly to http://YourIP:9990, you will be greeted with the following:

java -jar



While the error page tells you how to add a user, you will also need to update the standalone.xml as we did earlier if you want to allow access over your public IP.


Let's start with adding a Management user as shown on the error page:

As root, navigate to /usr/share/jboss-as/bin

[root@dev2 etc]# cd /usr/share/jboss-as/bin


Issue './add-user.sh' to run the script to add a Management user. Follow the prompts. Some defaults are provided.

[root@dev2 bin]# ./add-user.sh

What type of user do you wish to add?
 a) Management User (mgmt-users.properties)
 b) Application User (application-users.properties)
(a):

Enter the details of the new user to add.
Realm (ManagementRealm) :
Username : david
Password :
Re-enter Password :
About to add user 'david' for realm 'ManagementRealm'
Is this correct yes/no? yes
Added user 'david' to file '/usr/share/jboss-as/standalone/configuration/mgmt-users.properties'
Added user 'david' to file '/usr/share/jboss-as/domain/configuration/mgmt-users.properties'
[root@dev2 bin]#


While you can now access the Admin console on localhost (127.0.0.1), if you want to access it publicly, we need to update standalone.xml under /usr/share/jboss-as/standalone/configuration/ as we did earlier in Step 7.

Open standalone.xml in vi or a text editor and look for the management interface node as shown below.

<interface name="management">
<inet-address value="${jboss.bind.address.management:127.0.0.1}"/>
</interface>

To make the JBoss Admin console publicly accessible, change 127.0.0.1 to your your public IP or to 0.0.0.0 for all interfaces.

So, for example, if your public IP is 173.194.35.177, you would change it as so:

<interfaces>
        <interface name="management">
            <inet-address value="${jboss.bind.address.management:173.194.35.177}"/>
        </interface>
        <interface name="public">
            <inet-address value="${jboss.bind.address:173.194.35.177}"/>
        </interface>
        <!-- TODO - only show this if the jacorb subsystem is added  -->
        <interface name="unsecure">
            <!--
              ~  Used for IIOP sockets in the standard configuration.
              ~                  To secure JacORB you need to setup SSL
              -->
            <inet-address value="${jboss.bind.address.unsecure:127.0.0.1}"/>
        </interface>
    </interfaces>



Again, if you wish to have the Admin console publicly accessible on all interfaces, use 0.0.0.0 in place of your IP above.

Retstart JBoss to reload the the change to standalone.xml:

[root@dev2 init.d]# service jboss stop
Stopping jboss-as: *** JBossAS process (25794) received TERM signal ***
                                                           [  OK  ]
[root@dev2 init.d]# service jboss start
Starting jboss-as:                                         [  OK  ]


Now, navigate back to http://YourIP:9990 and you should be prompted for the Management user credentials you just created:

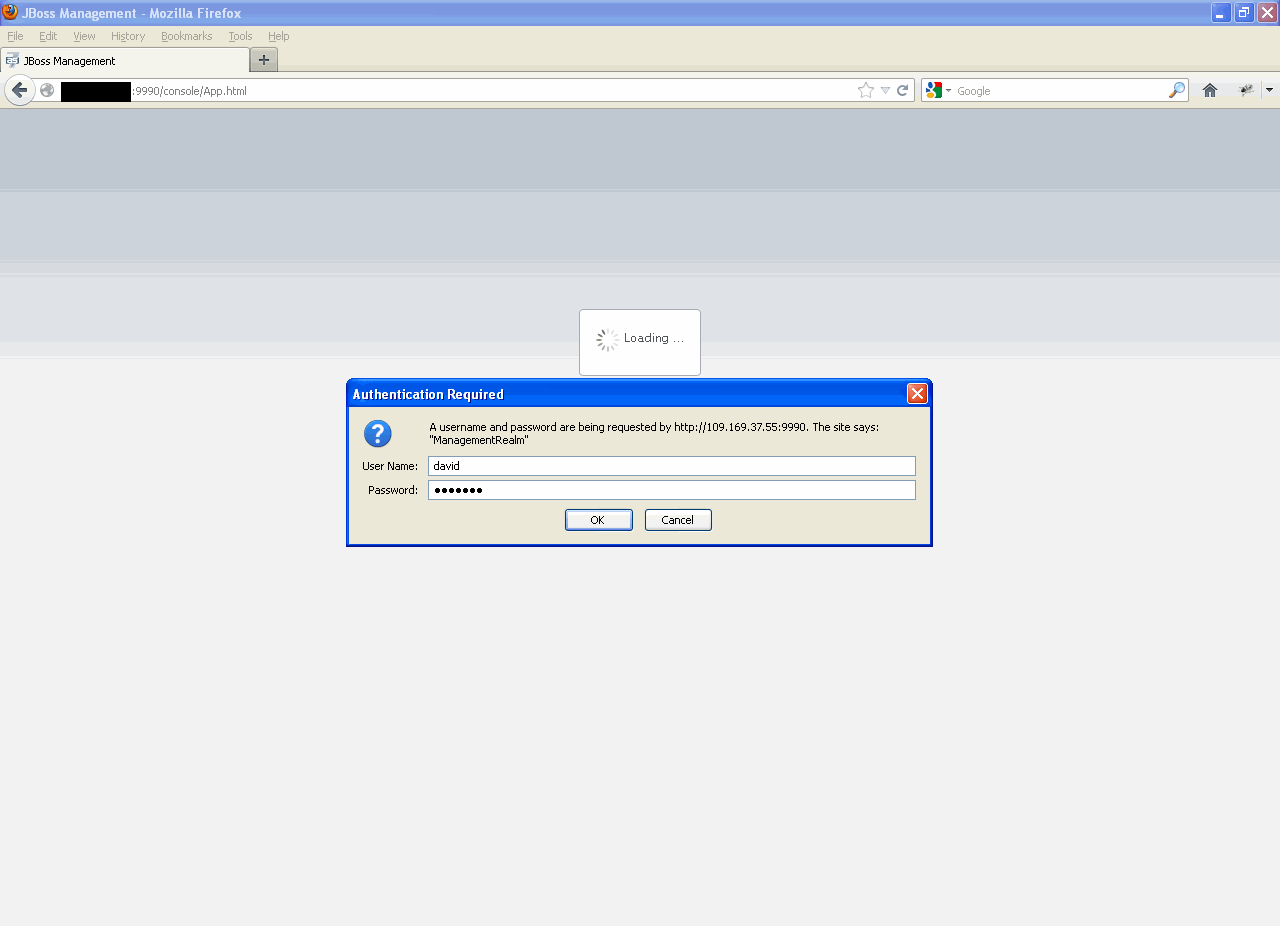

JBoss 7 Management User Log In



Below, we are now logged in to the Admin console as the Management user we created:


JBoss 7 Admin Console



Step 9 (Optional): Running JBoss on Port 80.


To run services below port 1024 as user other than root, you can use port forwarding.

You can do this by adding the following to your IP tables:

[root@sv2 ~]# iptables -t nat -A PREROUTING -p tcp -m tcp --dport 80 -j REDIRECT --to-ports 8080
[root@sv2 ~]# iptables -t nat -A PREROUTING -p udp -m udp --dport 80 -j REDIRECT --to-ports 8080


Be sure to save and restart your IP Tables.

Step 10 (Optional): Putting Apache in Front of JBoss.


As an alternative to running JBoss on port 80, if you have Apache in front of JBoss, you can use mod_proxy as well as ajp connector to map your domain to your JBoss applications using an Apache vhost as shown below:

While both Tomcat and JBoss have improved their standalone performance, I still prefer to have Apace in front for a number of reasons.

Note that when using proxy, if you will be proxy to localhost (which you should be), you will need to set your public interface bind address to either 0.0.0.0 (for all interfaces) or to 127.0.0.1 for localhost only.
<VirtualHost *:80>
    ServerAdmin admin@domain.com
    ServerName domain.com
    ServerAlias www.domain.com


    ProxyRequests Off
    ProxyPreserveHost On
    <Proxy *>
       Order allow,deny
       Allow from all
    </Proxy>


    ProxyPass / http://localhost:8080/
    ProxyPassReverse / http://localhost:8080/


    ErrorLog logs/domain.com-error_log
    CustomLog logs/domain.com-access_log common

</VirtualHost>



Alternatively, with the AJP connector enabled, you can use ajp as well:


<VirtualHost *:80>
    ServerAdmin admin@domain.com
    ServerName domain.com
    ServerAlias www.domain.com


    ProxyRequests Off
    ProxyPreserveHost On
    <Proxy *>
       Order allow,deny
       Allow from all
    </Proxy>


    ProxyPass / ajp://localhost:8009/
    ProxyPassReverse / ajp://localhost:8009/


    ErrorLog logs/domain.com-error_log
    CustomLog logs/domain.com-access_log common

</VirtualHost>


The AJP connector is NOT enabled by default. To enable the AJP connector:

1. Log into the Admin console
2. Click Profile on the top right.
3. On the left menu, go to Web > Servlet/HTTP.
3. Click on the "add" button at right.

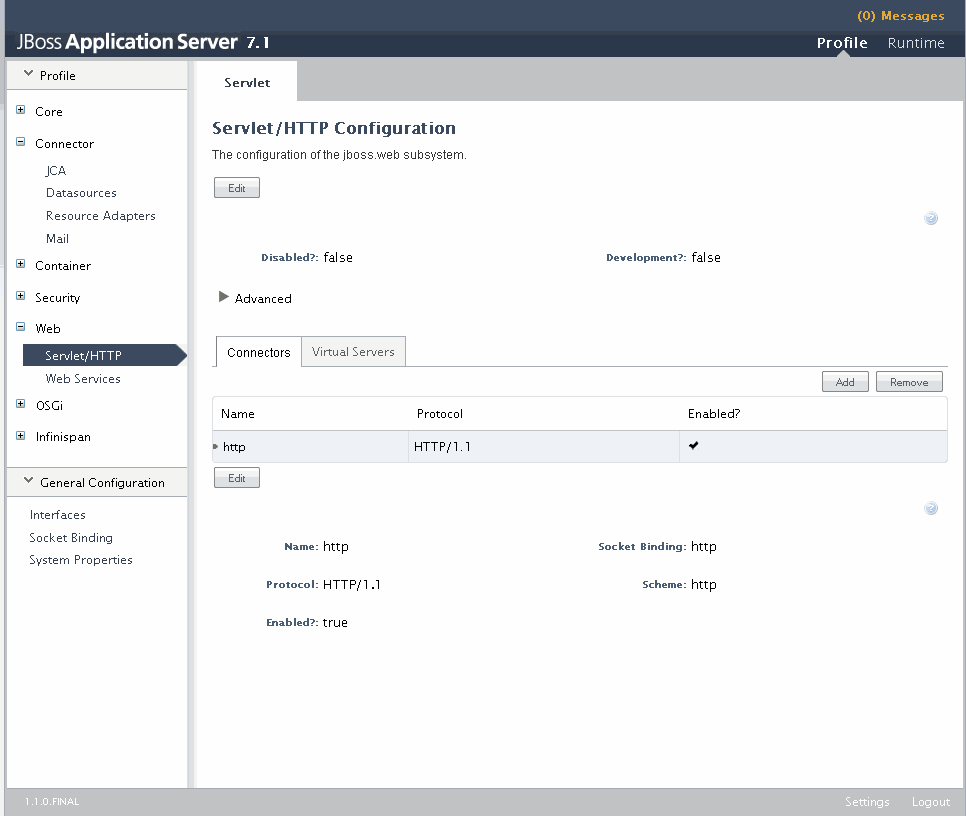

JBoss 7.1.1 Profile

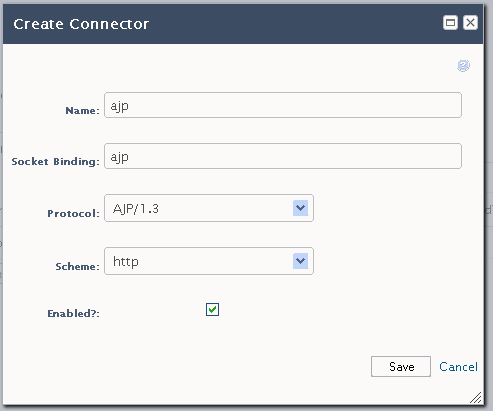

4. Enter the following in the Create Connector dialogue box as shown below.

5. Click Save.

JBoss 7.1.1 Welcome Page



The AJP connector is now enabled.

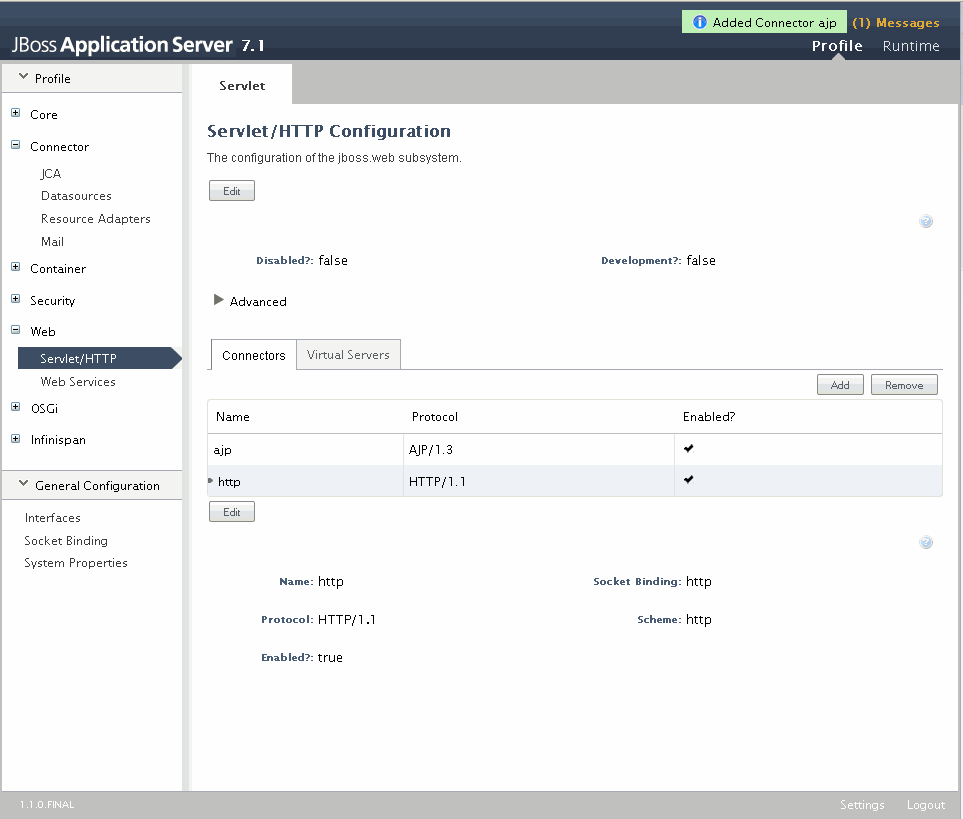

JBoss 7.1.1  AJP Connector



One final note above the vhost examples above (proxy and ajp).

In both vhost examples above, we are "mapping" the domain to the root.

If we wish to map to an application such as domain.com/myapp, we can add some rewrite as shown below.

This will rewrite all requests for domain.com to domain.com/myapp.


<VirtualHost *:80>
    ServerAdmin admin@domain.com
    ServerName domain.com
    ServerAlias www.domain.com

    RewriteEngine On
    RewriteRule ^/$ myapp/ [R=301]


    ProxyRequests Off
    ProxyPreserveHost On
    <Proxy *>
       Order allow,deny
       Allow from all
    </Proxy>


    ProxyPass / ajp://localhost:8009/
    ProxyPassReverse / ajp://localhost:8009/


    ErrorLog logs/domain.com-error_log
    CustomLog logs/domain.com-access_log common

</VirtualHost>


JBoss 7.1.1 Docs

Bookmark and Share



Comments:

I'd prefer to do an rpm based installation rather than unzipping and doing the manual user, path, script and service setup.
Is there an rpm of jboss as7 available for CentOS 6?

Posted by John Smith on August 23, 2012 at 05:06 PM CDT #

Hi John,

There is no rpm package distributed by jboss

You could Google around and see if someone has packaged one, but I would go with the manual installation either way. Same for any app server.

Thanks,
David

Posted by David Ghedini on August 23, 2012 at 09:21 PM CDT #

You're awesome!
Just what I needed.

Posted by Ram on August 26, 2012 at 03:13 PM CDT #

Nice tutorial.
I've finished the steps and the jboss already running.
But when I try to add management user using the add-user.sh, I got "./add-user.sh: line 66: java: command not found" message instead.
Any idea what's wrong?

Posted by William on September 06, 2012 at 05:31 AM CDT #

Hi William -

Glad you found it useful.

Since we are running the 'add-user.sh' script as root, Java needs to be in the path of root (or you will get the 'java: command not found' error).

I have updated step 4 to reflect this.

Thanks,
David

Posted by David Ghedini on September 06, 2012 at 09:54 AM CDT #

Hi David,
Everything works perfectly now.
Thanks,
William

Posted by William on September 06, 2012 at 09:55 PM CDT #

Hi William -

Glad it is sorted.

Thank you for pointing out the omission in step 4.

Thanks,
David

Posted by David Ghedini on September 07, 2012 at 06:40 AM CDT #

A great post regarding JBOSS AS 7 installation from start to finish.

Posted by Jigar on September 20, 2012 at 06:00 AM CDT #

Nice guide. Thanks for that.

Posted by Toby on October 16, 2012 at 05:08 AM CDT #

Very Good Tutorial. I was able to successfully install JBOSS 7.
Thanks so much.
BILL MARIASOOSAI

Posted by BILL MARIASOOSAI on October 24, 2012 at 03:25 AM CDT #

Thanks for the tutorial, it is very well done and was really helpful.

The only improvement I would suggest is for step 5. Instead of modifying the init.d script I think it is better to copy jboss-as.conf in /etc/jboss-as and to modify it.

$ mkdir /etc/jboss-as
$ cp /usr/share/jboss-as/bin/init.d/jboss-as.conf /etc/jboss-as/

In that way it is cleaner and simpler to change JBOSS_USER.

I also set JBOSS_CONFIG to standalone-full.xml in this config file in order to start all the JBOSS services. It is mandatory to deploy all the examples from http://www.jboss.org/jdf/quickstarts/get-started

Posted by Michael DUSSERE on January 03, 2013 at 08:25 AM CST #

Hi Michael,

Thanks for the feedback and link.
I'll update the post to include your suggestions.

Thanks!
David

Posted by David Ghedini on January 03, 2013 at 09:04 AM CST #

Thanks a lot for your tutorial.

Posted by Alfredo Osorio on February 26, 2013 at 12:48 PM CST #

Hi and thanks a lot for this tutorial!

One feedback:
Step 3: -> chown command: maybe a colon is needed instead of the dot? (jboss:jboss not jboss.jboss)

Again, thank you very much!!!
<
Ciao!
Gianfranco

Posted by Gianfranco on March 12, 2013 at 10:21 AM CDT #

Very useful article. Thank you very much

Posted by Raghu on April 16, 2013 at 05:57 AM CDT #

When I start the service user jboss with jboss I get the following error:
Starting jboss-as: runuser: can not set the group: Operation not permitted
I do these steps:

[root@ecm /]# su - jboss
[jboss@ecm ~]$ service jboss start
Starting jboss-as: runuser: can not set the group: Operation not permitted

Gracias...

Posted by Alexander on May 16, 2013 at 01:34 PM CDT #

I’m trying to start jboss with "jboss" user and returns me the following error message: Starting jboss-as: runuser: no se puede establecer el grupo: Operación no permitida runuser: cannot set groups: Operation not permitted

Posted by Alexander on May 18, 2013 at 12:36 PM CDT #

Hi Alexander -

Do not start as user jboss (su - jboss).
Start the service as root as shown in Step 6 above.

Thanks,
David

Posted by David Ghedini on May 18, 2013 at 12:54 PM CDT #

You just explained it all.. Thank you.

Posted by Jithin on June 07, 2013 at 10:57 AM CDT #

Thank you very much that good tutorial greetings, from Colombia.

Posted by alexalvarez0310 on June 20, 2013 at 05:55 PM CDT #

Thanks a lot for your tutorial. alexalvarez0310

Posted by alexalvarez0310 on June 28, 2013 at 10:22 AM CDT #

Excellent, David, this is great help to me

Posted by Daniel Suarez on July 30, 2013 at 11:25 PM CDT #

thanks for this wonderfull tutorial

Posted by Amit Sharma on November 11, 2013 at 12:34 PM CST #

Post a Comment:
  • HTML Syntax: Allowed

Main Menu

Built With

Search

Pages

LinkedIn

Technorati Profile

Add Technorati Favorite

Tag Cloud

Enciva Solutions

Navigation

Visitors

Sponsors

Feeds

Tag Cloud

VPS Hosting: 1Gbps Network
